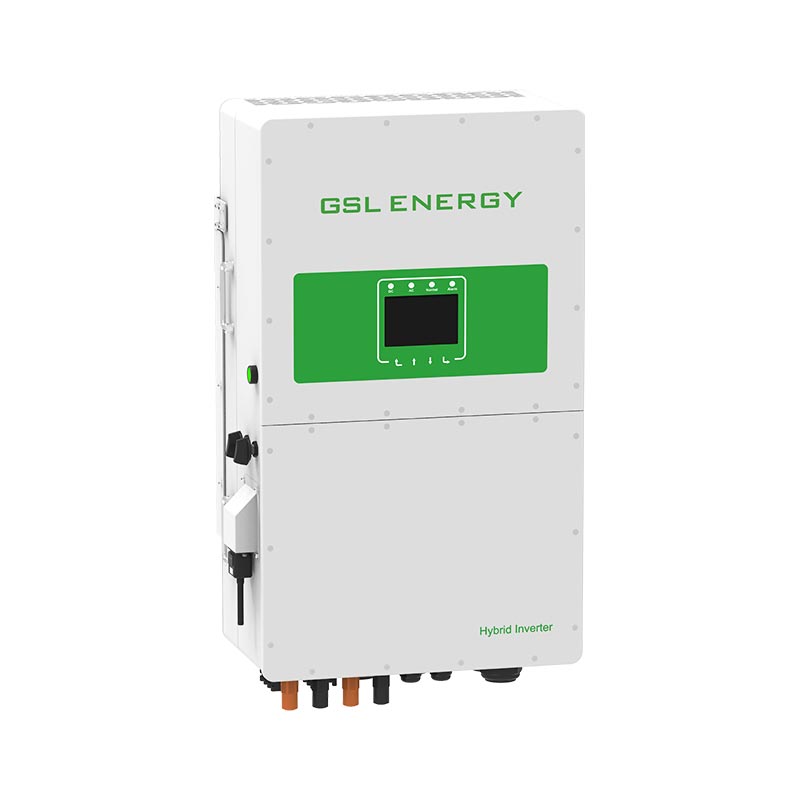

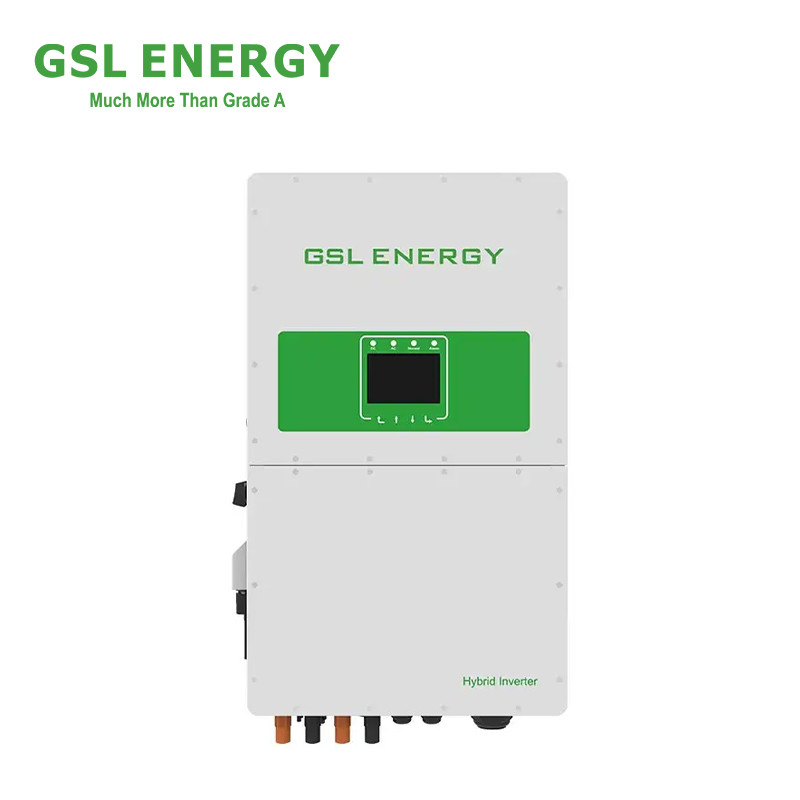

This multifunctional inverter combines the functions of an inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD offers user-configurable and easily accessible button operations such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Features :
100% unbalanced output, each phase; Max. output up to 50% rated power
AC coupled to retrofit existing solar system
10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
| Model | GSL-29.9KHV-3PH | GSL-30KHV-3PH | GSL-35KHV-3PH | GSL-40KHV-3PH | GSL-50KGV-3PH |
| Battery Input Data | |||||
|
Battery Type |
Li-Ion | ||||
| Battery Voltage Range (V) | 160~800 | ||||
| Max.Charging Current (A) | 50+50 | ||||
| Max.Discharging Current (A) | 50+50 | ||||
| Number of Battery Input | 2 | ||||
| Charging Strategy for Li-on Battery | Self-adaption to BMS | ||||
| PV String Input Data | |||||
| Max.DC Input Power (W) | 38870 | 39000 | 45500 | 52000 | 65000 |
| Max.DC Input Voltage (V) | 1000 | ||||
| Start-up voltage (V) | 180 | ||||
| MPPT Range (V) | 150-850 | ||||
| Rated DC Input Voltage (V) | 600 | ||||
| Max. Operating PV Input Current (A) | 36+36+36 | 36+36+36+36 | |||
| Max. Input Short-Circuit Current (A) | 55+55+55 | 55+55+55+55 | |||
|
No.of MPPT Trackers/ No.of String Per MPPT Tracker |
3/2+2+2 | 4/2+2+2+2 | |||
| AC Output Data | |||||
| Rated AC Output and UPS Power (W) | 29900 | 30000 | 35000 | 40000 | 50000 |
| Max. AC Output Power (W) | 29900 | 33000 | 38500 | 44000 | 55000 |
| AC Output Rated Current (A) | 37.9/36.3 | 45.5/43.5 | 53.1/50.8 | 60.7/58 | 75.8/72.5 |
| Max. AC Output Rated Current (A) | 45.4/43.4 | 50/43.5 | 58.4/55.8 | 66.7/63.8 | 83.4/79.7 |
| Max. Three-phase Unbalanced Output Current (A) | 60 | 60 | 60 | 70 | 83.3 |
| Max. Continuous AC Passthrough (A) | 200 | ||||
| Peak Power (off grid) | 1.5 time of rated power, 10 S | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Component of Grid | <0.5% In | ||||
| Efficiency | |||||
| Max. Efficiency |
97.60% |
||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | 99.00% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | ||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | WIFI, RS485, CAN | ||||
| General Data | |||||
| Operating Temperature Range(℃) | -40~60℃, >45℃ derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤65 dB(A) | ||||
| Ingress Protection(IP) Rating | IP65 | ||||
| Inverter Topolog | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||||
| Cabinet Size (WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 80 | ||||
| Type of Cooling | Intelligent Air Cooling | ||||
| Warranty |
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
