Safe and reliable
The cathode material is made from LifePO4 with safety performance and long cycle life.
Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power.
Convenient
The quick installation standard of the 19-inch embedded module is comfortable for installation and maintenance.
Intelligent BMS
Protection functions include over-discharge overcharge, over-current, and over-high or low temperature.
Eco Friendly
The whole module is nontoxic, nonpolluting, and environmentally friendly

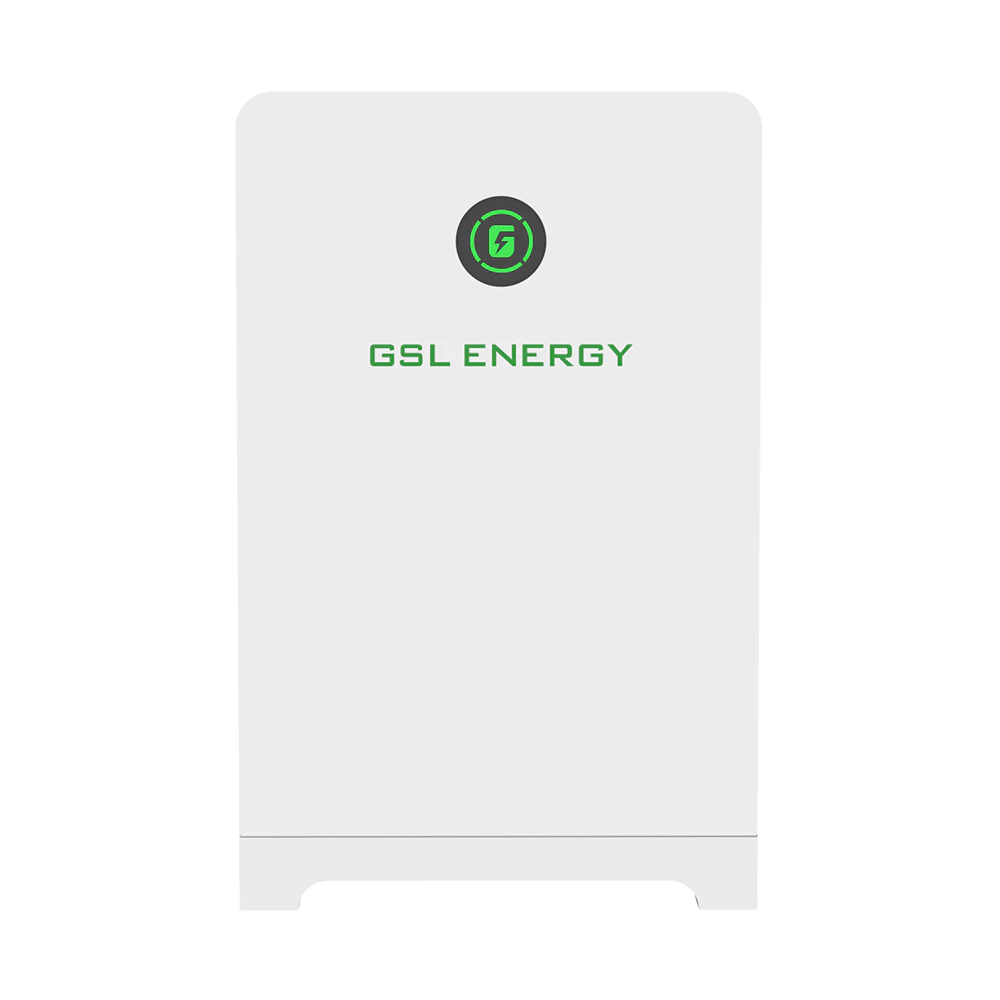

| MODEL NO |
GSL051280A-B-GBP2
|
GSL051320A-B-GBP2 |
| Battery Chemistry |
LiFePO4 |
|
Capacity (Ah)
|
280
|
320 |
| Scalability |
Max.16pcs in parallel (229kWh) |
Max.16pcs in parallel (262kWh) |
|
Nominal Voltage (V)
|
51.2 |
| Operating Voltage(V) |
46-56 |
|
Energy (kWh)
|
14.34 |
16.38 |
|
Recomend Discharge Energy (80% DOD) (kWh)
|
13.10 |
14.70 |
|
Charge/Discharge Current (A)
|
Recommend
|
100 |
100 |
|
Max.
|
150 |
150 |
|
Peak(2mins,25℃)
|
200 |
200 |
| Other Parameter |
|
| Recommend Depth of Discharge |
80% |
| Dimension (W/H/D,mm) |
1200*700*200mm |
|
Weight Approximate (kg)
|
145.50 |
165.50 |
| Master LED Indicator |
4 LED (SOC:25%~100%) |
| 2 LED (working, alarming, protecting) |
|
IP Rating of Enclosur
|
IP65 |
| Working Temperature |
Charge:0℃～55℃ Discharge:-20℃～55℃ |
|
Storage Temperature
|
0℃～35℃ |
| Humidity |
5%~95% |
| Altitude |
≤2000m |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥8500 |
≥10000 |
| Installation |
Outdoor&Ground |
| Communication Port |
CAN2.0, RS485 |
| Warranty Period [3] |
15 years |
| Certification |
UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3
|
