GSL Energy, with 13 years of experience in energy storage lithium battery manufacturing, New presents this IP65 waterproof wall-mounted LiFePO4 battery with a 14.34kWh capacity, 280Ah, and 51.2V output. Certified by UL9540A, UL9540, UL1973, CB-IEC62619, CE-EMC, UN38.3, and MSDS, it is ideal for reliable home and commercial energy storage.

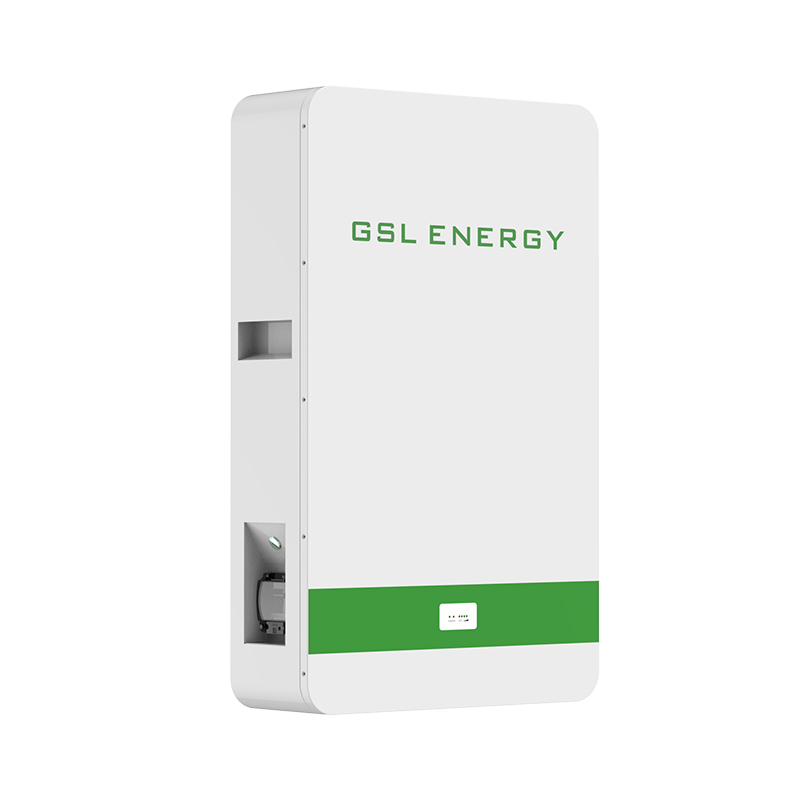

GSL Energy’s wall-mounted Powerwall battery, GSL-051280A-B-GBP2, boasts a 14.34kWh capacity with a 51.2V output, making it a versatile solution for residential, commercial, and backup energy needs. Engineered with a high-safety LiFePO4 (Lithium Iron Phosphate) battery, it meets industry standards with UL9540A, UL9540, UL1973, CB-IEC62619, CE-EMC, UN38.3, and MSDS certifications, ensuring superior safety, performance, and reliability. The advanced Battery Management System (BMS) optimizes efficiency and prolongs the battery's life cycle, while the IP65 waterproof rating supports indoor and outdoor installations, providing a consistent and high-performing energy source suitable for diverse power loads.
LiFePo4 Battery Specifications | |||||
Model No. | GSL-051280A-B-GBP2 | ||||
Nominal Parameters | |||||
Cell Type | LiFePo4 Battery | ||||
Rated Voltage | 51.2V | ||||
Operating Voltage | 46-56V | ||||
Capacity | 280Ah | ||||
Energy | 14.34kWh | ||||
Usable Energy |
12.91kWh | ||||
Scalability | Max.16pcs in parallel (229kWh) | ||||
Charge/Discharge Current |
Recommend | 100A | |||
Max. duration | 150A | ||||
Peak(2min, 25℃) | 200A | ||||
Basic Parameters | |||||
Recommend Depth of Discharge | 80% DOD | ||||

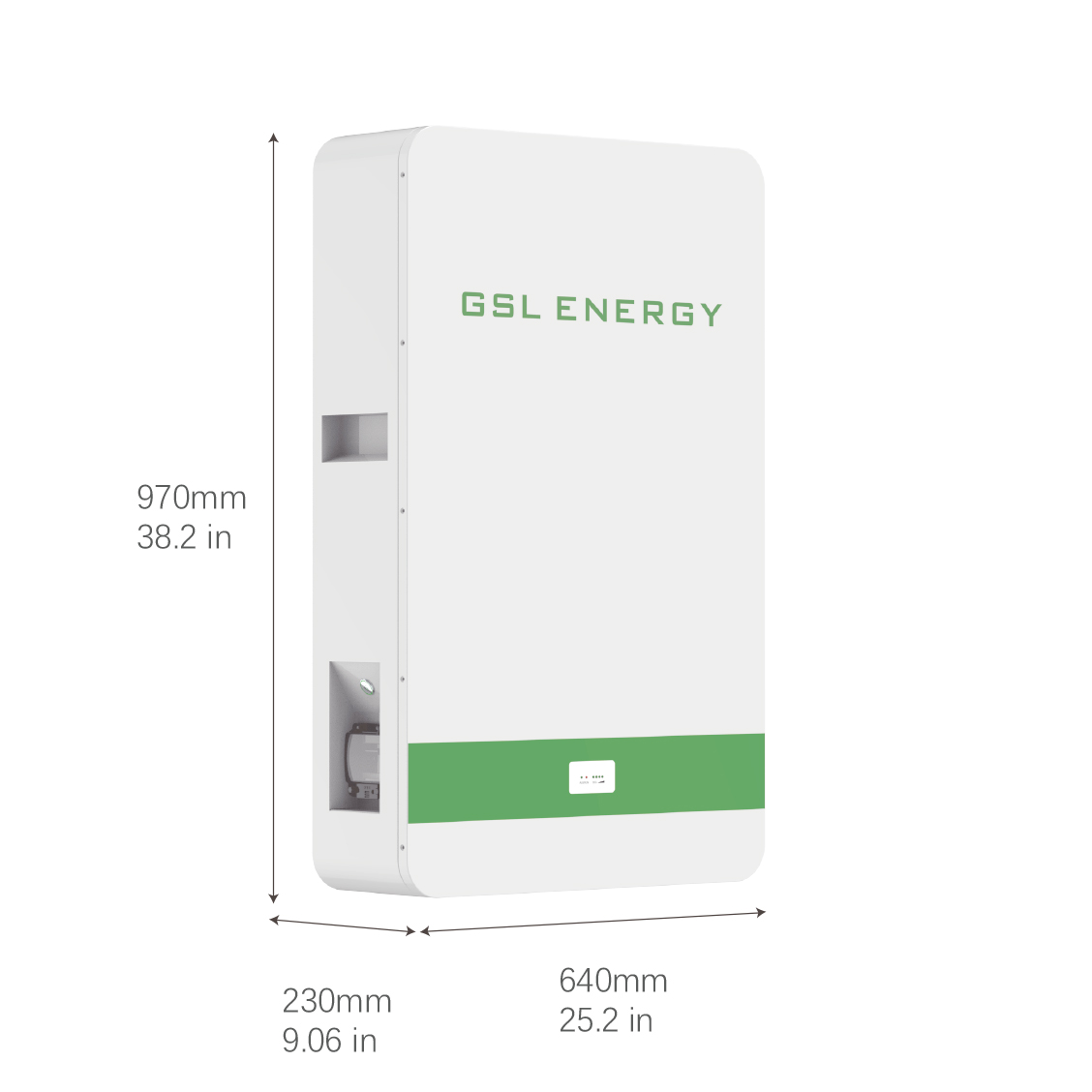

Dimension (W/H/D) | 970*640*230mm / 38.2*25.2*9.06 in | ||||
Weight Approximate | 128.5kgs / 283 lbs | ||||
Master LED Indicator | 4 LED (SOC:25%~100%) | ||||
2 LED (Run, Alarming / protecting) | |||||
IP Rating of Enclosur | IP65 | ||||
Working Temperature | Charge: 0~55℃; Discharge:-20~55℃ | ||||
Storage Temperature | 0℃~35℃ | ||||
Humidity | 5%~95% | ||||
Altitude | ≤2000m | ||||
Cycle Life | ≥8500 (25±2℃,0.5C/0.5C,80%EOL) |
||||
Installation | Wallmounted | ||||
Communication Port | CAN2.0, RS485, WIFI | ||||
Warranty Period | 10 years | ||||
Certification | UL9540A, UL9540, UL1973, CB-IEC62619, CE-EMC, UN38.3, MSDS |
