GSL Energy 51.2V 314Ah 16kWh Power Tower Battery (Model: GSL-W-16K) with Button Screen - Mobile Design, 5-Year Warranty

Home /  Products /  Power Wall Storage Battery

GSL Energy 51.2V 314Ah 16kWh Power Tower Battery (Model: GSL-W-16K) with Button Screen - Mobile Design, 5-Year Warranty

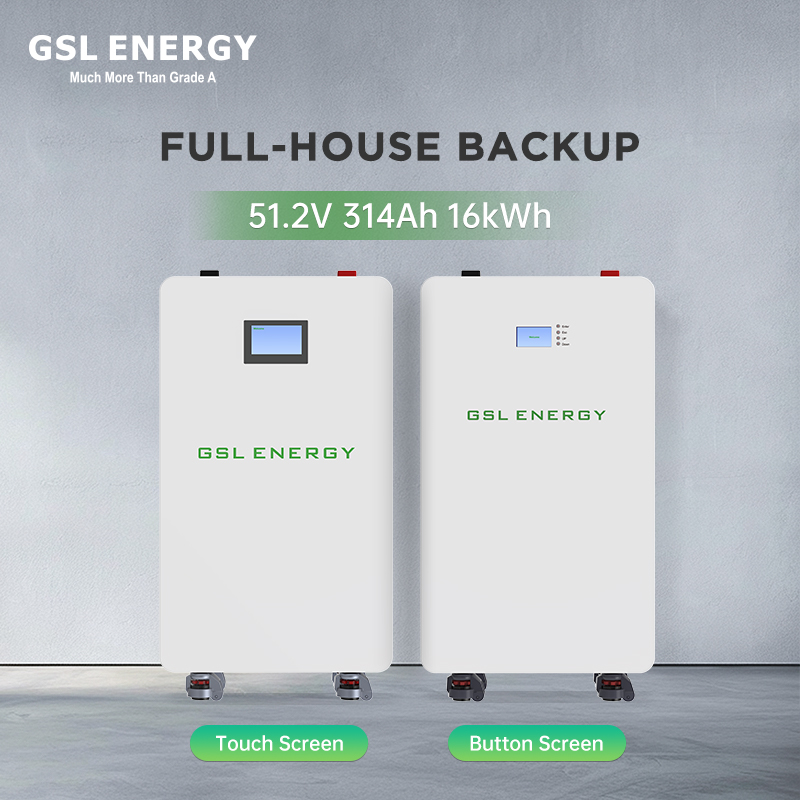

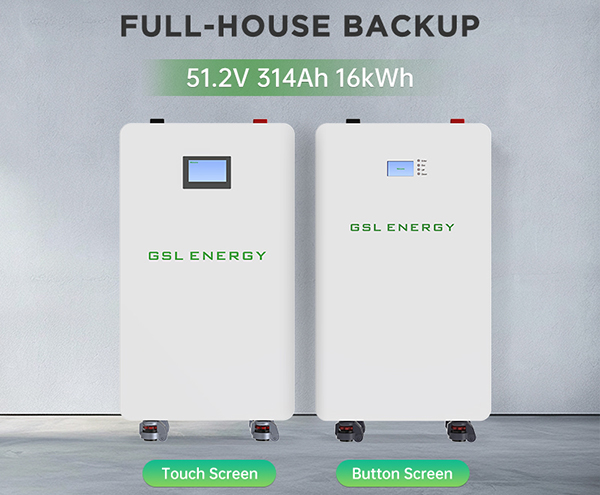

The GSL Energy Power Tower Battery GSL-W-16K, with a 16kWh capacity (51.2V, 314Ah), features a button screen interface and a mobile design on rollers. This latest model, certified by CB IEC62619, CE, UN38.3, and MSDS, is backed by a 5-year warranty for reliable energy storage.

  • Parameter
  • Related products
Parameter


GSL Energy lithium battery factory presents the GSL-W-16K, a 51.2V 314Ah 16kWh Power Tower Battery designed for versatile ESS applications. Equipped with a convenient button screen and mobile design with integrated rollers, this model offers flexibility in placement for various energy storage needs. As a leading vertically integrated lithium battery manufacturer, GSL Energy has leveraged core technology in cell, BMS, and system design to produce this advanced product. Certified by CB IEC62619, CE, UN38.3, and MSDS, the GSL-W-16K ensures safety, efficiency, and reliability, backed by a 5-year warranty. This battery is suitable for residential and commercial applications, serving users across more than 138 countries.

Battery Specifications
 Model No GSL-W-16K
Nominal Parameters
Battery Chemistry LiFePO4 Battery
Voltage 51.2V
Capacity 314Ah
Energy 16.08Kwh
Dimension (W/H/D) 522.6*1007*343mm / 20.6*39.6*13.5 in
Weight Approximate 145.5kgs / 320 lbs
Basic Parameters
 Designed Life 5 years
Cycle Life
(25±2℃,0.5C/0.5C,80%EOL)
6000
Storage Time / Temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation Temperature -20°C to 60°C @ 60+/-25% Relative Humidity
Storage Temperature 0°C to 45°C @ 60+/-25% Relative Humidity
Certification CB IEC62619, CE, UN38.3, MSDS
IP Rating of Enclosur IP20
Electrical Parameters

             Operation Voltage
46-56Vdc
  Max. Charging Voltage 56Vdc
  Max. Charging Current 150A
 Max. Discharging Current 150A
 Max Power 7680W
