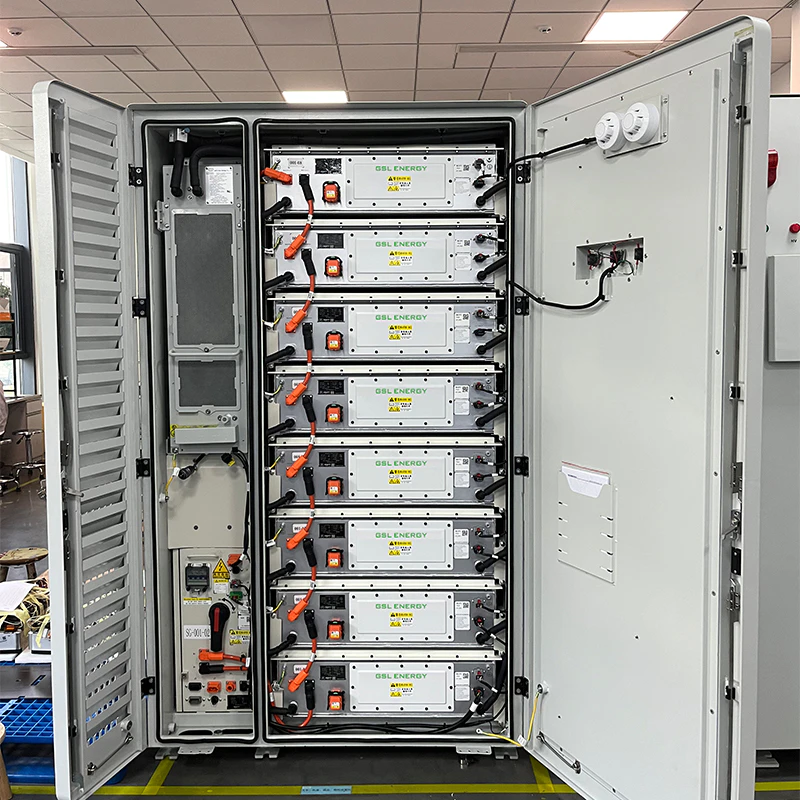

BESS-372K, the liquid cooling battery storage cabinet that offers high safety, efficiency, and convenience. Equipped with high-quality phosphate iron lithium battery cells and advanced safety features, it ensures safe and reliable operation. The high-efficiency BMS technology eliminates series losses and reduces module inconsistency, resulting in a longer lifespan of more than 10 years. Additionally, the efficient thermal management system maintains a temperature difference of less than 3°C among cells. With its standardized design and modular structure, it's easy to install and maintain, making it an ideal solution for businesses seeking to optimize their energy usage and reduce costs.
372kWh liquid-cooling high Voltage Energy Storage System
Independent temperature controlThe adoption of centralized refrigeration, multistage pipelines, and
co-current flow in parallel flow design facilitates a temperature difference of 3 ℃ for the container.
Flexible deployment
Each outdoor unit integrates a Water Cooling System, a Fire Protection System, and a DC Control System independently in an installation completion design for easy transportation of the complete equipment.
Three-level control architecture
The three-level BMS architecture of General Control, Master Control, and Slave Control is compatible with local EMS functions and mainstream communication protocols.
System Safety
With a DC 5000V withstand voltage without flash-over,multi-layer disconnection protection mechanism IP68 level ingression protection for the Boxed Battery
The system, 1000-hour high-temperature reliability test for the pipeline, and high-level system safety are secured.
Capacity upgrade
As 306 Ah cells were initially adopted in this Power Supply System, 320 Ah cells are recommended for capacity expansion.
Long-term service
Special cells with a standard cycle of 10000 times dedicated to energy storage adopted in the system secure a continuous operation for 10 years.
Multiple fire prevention
The "3+2" fire prevention and control measures include fire protection at the module level + fire protection at the container level, fire protection with gas fire protection with water, combustible gas detection, combustible gas venting, and explosion relief.
| Model No | GSL-BESS-372K |
| Battery Energy Storage | |
|
Single Cell Type
|
LFP 3.2V/280AH |
|
Module Combination
|
1P52S
|
|
System Combination |
8 modules in series
|
|
Capacity (kWh)
|
372.7
|
|
Nominal Voltage (Vdc)
|
1331.2V |
|
Voltage Range (Vdc)
|
1164.8～1497.6V |
|
Charge/Discharge Current
|
140A/0.5C
|
|
Discharge Depth
|
90% DoD |
|
Service Life
|
>10000 cycles@80%DoD
|
|
Thermal Management Mode
|
Liquid cooling technology
|
|
Thermal runaway management-1
|
Aerosol Extinguishing or PFH
|
|
Thermal runaway management-2
|
Water Immersion
|
| General Parameters | |
|
Dimensions (W*D*H) (mm)
|
1300*1300*2340
|
|
Total Weight (kg)
|
3500
|
|
Operation Altitude
|
3000m(>3000m derating)
|
|
Noise Level @1m |
<75 dB(A)
|
|
IP Rating
|
IP55
|
| Operating Temperature | –20°C to 55°C |
| Operating Humidity (RH) | 0 to 95% |
| Storage Conditions | –20°C to 30°C, Up to 95% RH, non-condensing State of Energy (SoE): 50% initial |
| System Characteristic | |
| Communication Interface | CAN, RS485, Wi-Fi |
| Warranty | 10Years |
| Certifications*(pending) | UL1973/UL9540/UL9540A/IEC62619/UN38.3 |
