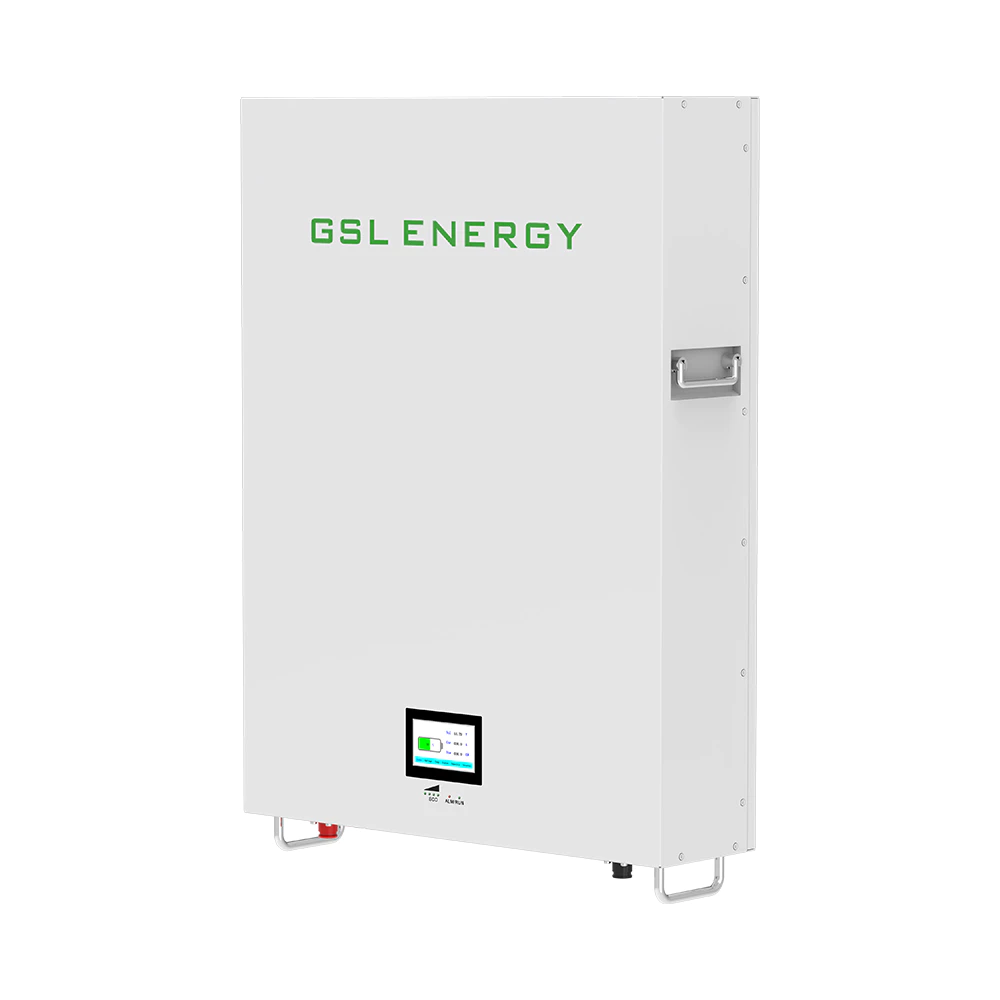

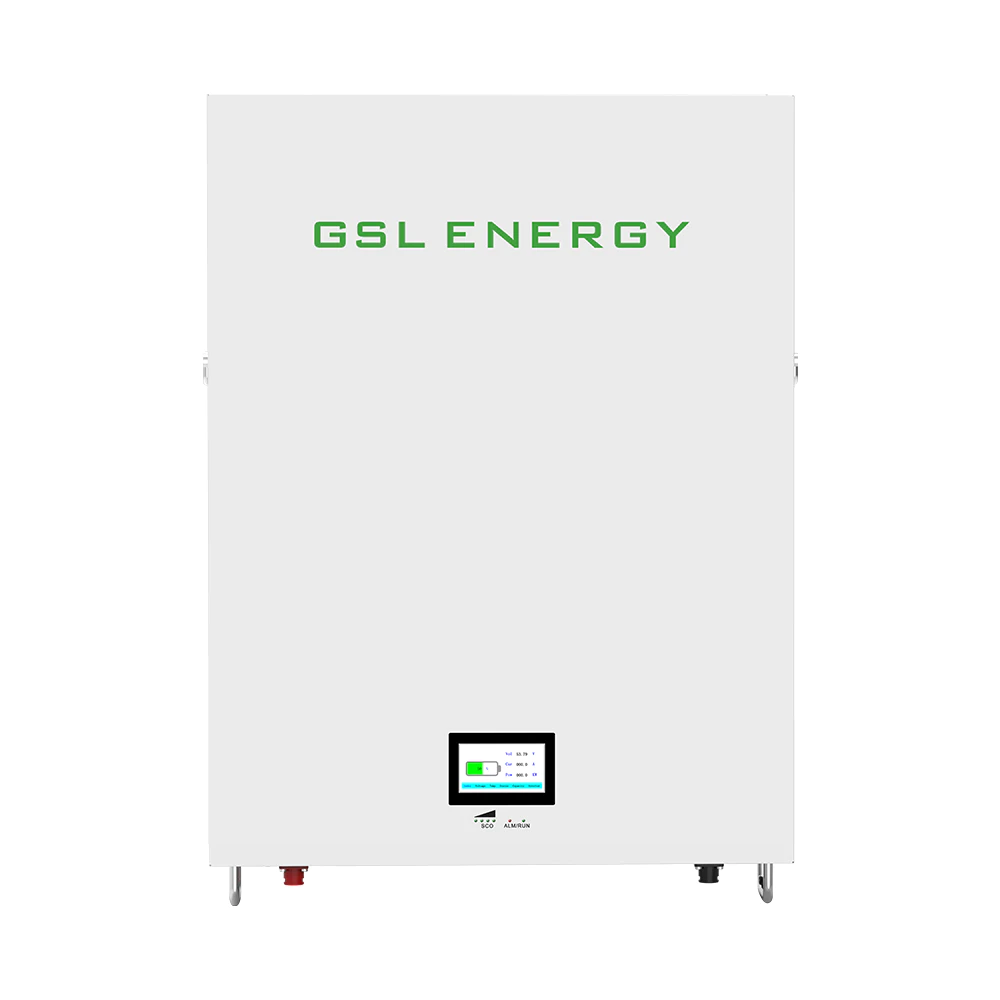

GSL Power Storage Wall: energy independence at your fingertips. 14.34kWh capacity, auto-switches to backup during outages. Solar-rechargeable, keeping your home & EV running for days. Reduce grid dependence, save money, & minimize your carbon footprint. Perfect standalone or with GSL solar solutions.
| MODEL NO |
GSL051280A-B-GBP2
|
| Battery Chemistry |
LiFePO4 |
|
Capacity (Ah)
|
280
|
| Scalability |
Max.16pcs in parallel (229kWh) |
|
Nominal Voltage (V)
|
51.2 |
| Operating Voltage(V) |
46-56 |
|
Energy (kWh)
|
14.34 |
|
Usable Energy (kWh)
|
12.91 |
|
Charge/Discharge Current (A)
|
Recommend
|
100 |
|
Max.
|
150 |
|
Peak(2mins,25℃)
|
200 |
| Other Parameter |
| Recommend Depth of Discharge |
80% |
| Dimension (W/H/D,mm) |
900*675*200 |
|
Weight Approximate (kg)
|
128.50 |
| Master LED Indicator |
4 LED (SOC:25%~100%) |
| 2 LED (working, alarming, protecting) |
|
IP Rating of Enclosur
|
IP20 |
| Working Temperature |
Charge:0℃～55℃ Discharge:-20℃～55℃ |
|
Storage Temperature
|
0℃～35℃ |
| Humidity |
5%~95% |
| Altitude |
≤2000m |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥8500 |
| Installation |
Wallmounted |
| Communication Port |
CAN2.0, RS485 |
| Warranty Period [3] |
15 years |
| Certification |
UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3
|
