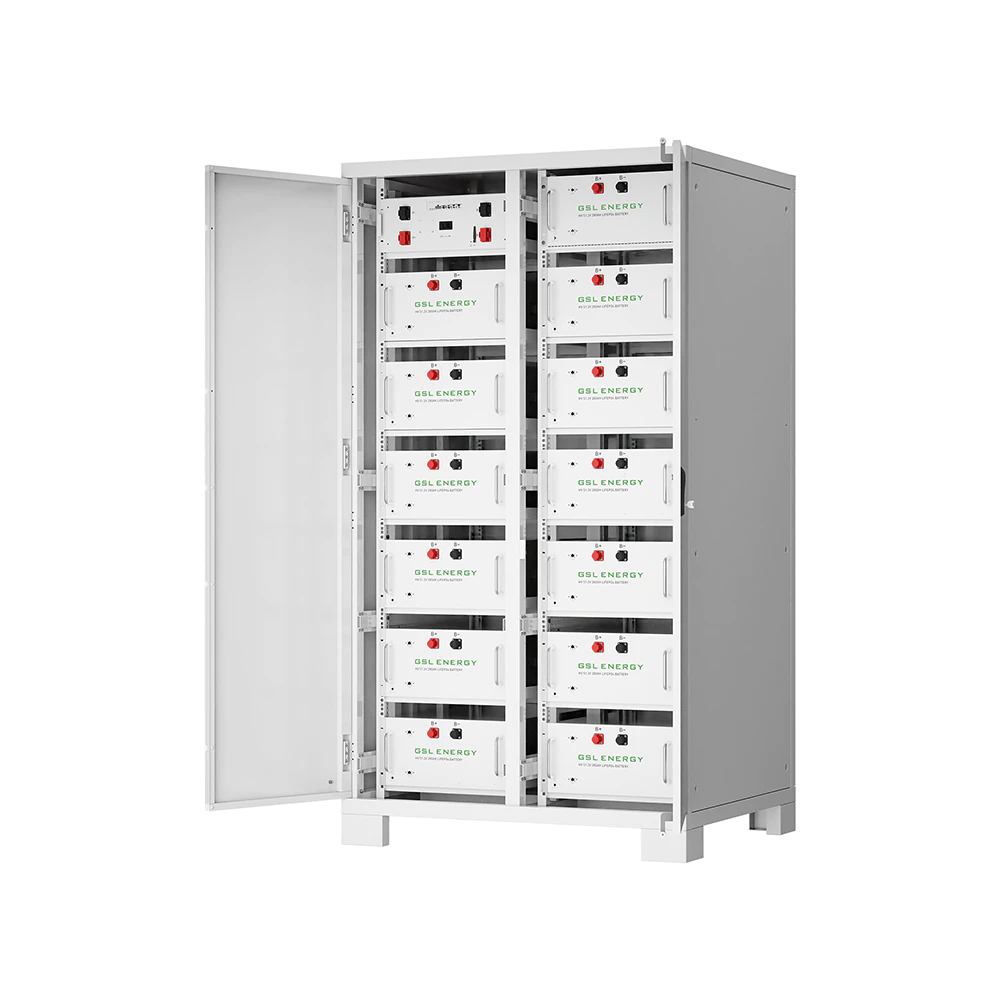

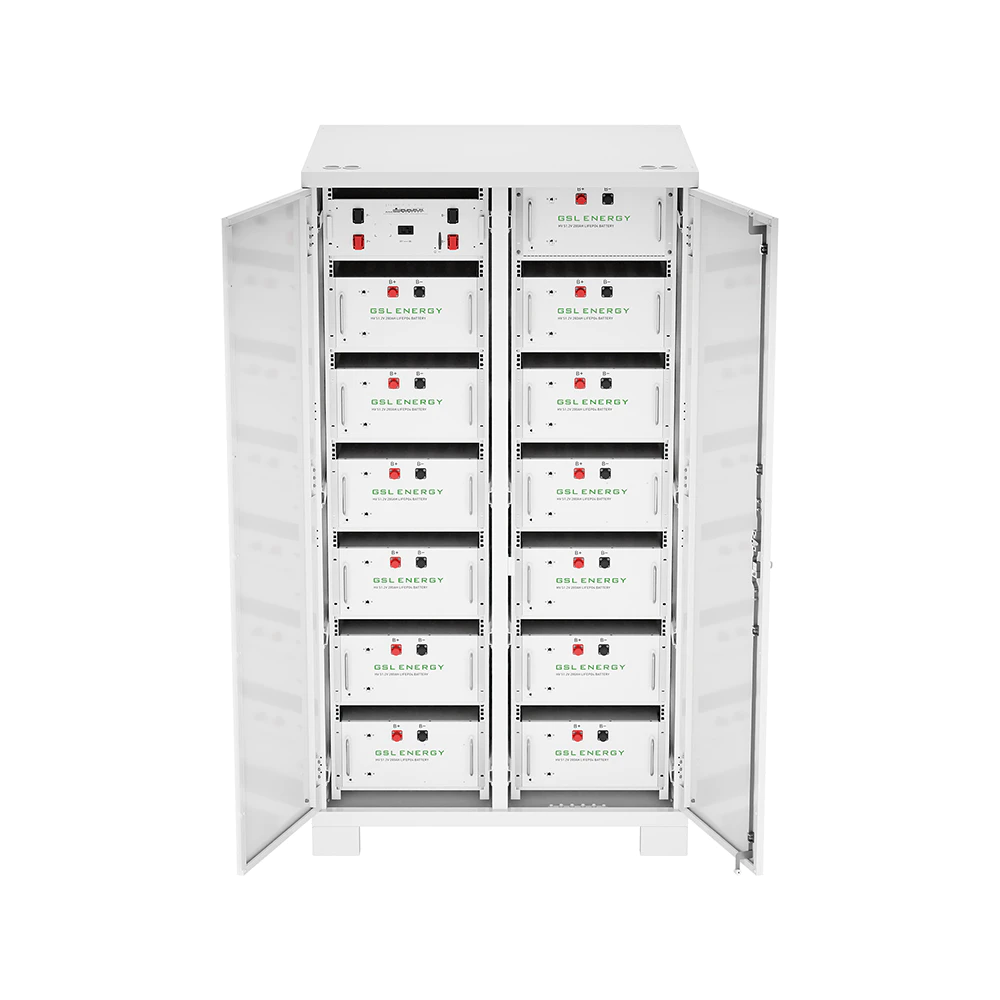

114kWh/143kWh/172kWh/186kWh 409V/512V/614V/665V Commercial and Industrial energy storage systems(BESS)
GSL-HV51280 14.34kWh Module
Safe and reliable
The cathode material is made from LifePO4 with safety performance and long cycle life.
Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power.
Convenient
The quick installation standard of the 19-inch embedded module is comfortable for installation and maintenance.
Intelligent BMS
Protection functions include over-discharge overcharge, over-current, and over-high or low temperature.
Eco Friendly
The whole module is nontoxic, nonpolluting, and environmentally friendly
| Model No |
GSL-R115K
|
GSL-R143K |
GSL-R172K |
GSL-R186K |
|
Nominal Capacity
|
114.72kWh |
143.4kWh |
172.08kWh |
186.42kWh |
|
Cell Matching
|
128S1P
|
160S1P |
192S1P |
208S1P |
|
Working Voltage Range
|
358.4-460.8V
|
448-576V
|
537.6-691.2V
|
598-728V |
|
|
409.6V
|
512V |
614.4V |
665.6V |
|
Weight
|
1165kg |
1370kg |
1624.5kg |
1844.5kg |
|
Dimension (WxDxH)
|
1200*1000*2200mm |
|
Battery Type
|
LFP(LiFePO4)
|
|
Nominal Working Current
|
200A |
|
Communication Port
|
CAN/TCP/IP
|
|
Working Temperature Rang
|
Charge:0-55°C/Discharge:-20-55°C
|
|
Waterproof
|
IP20
|
|
Installation Method
|
Floor-standing
|
|
Cycle Life
|
6500 |
| Warranty Period |
10 years |
|
Peak Charge/Discharge Current
(@25°C,5S)
|
200A
|
|
Discharge Rate of Module
|
≤3.5%/month/@25°C
|
| Parallel Connection |
5 unit in parallel |
