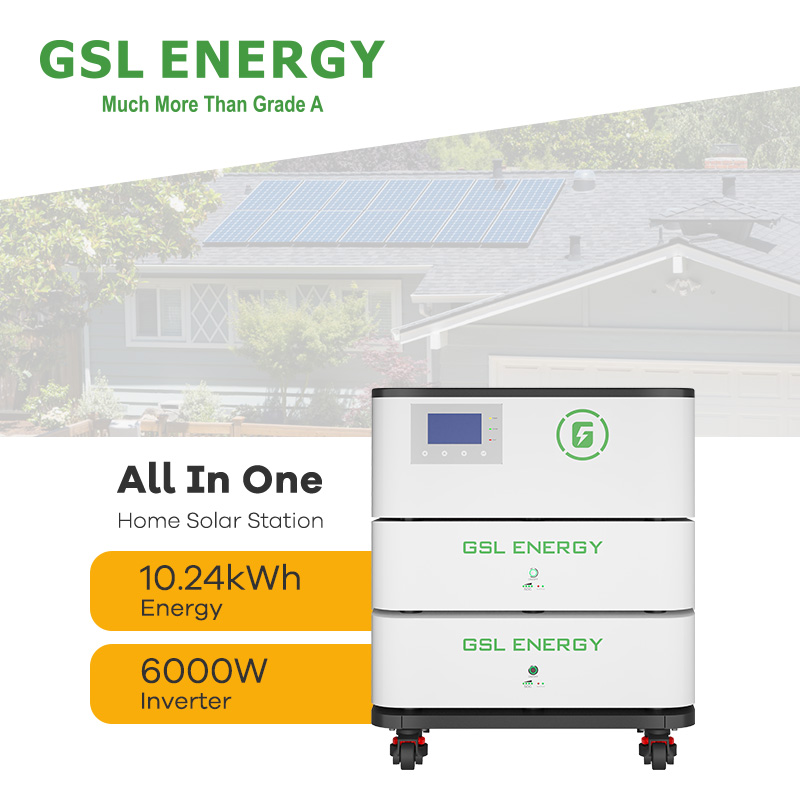

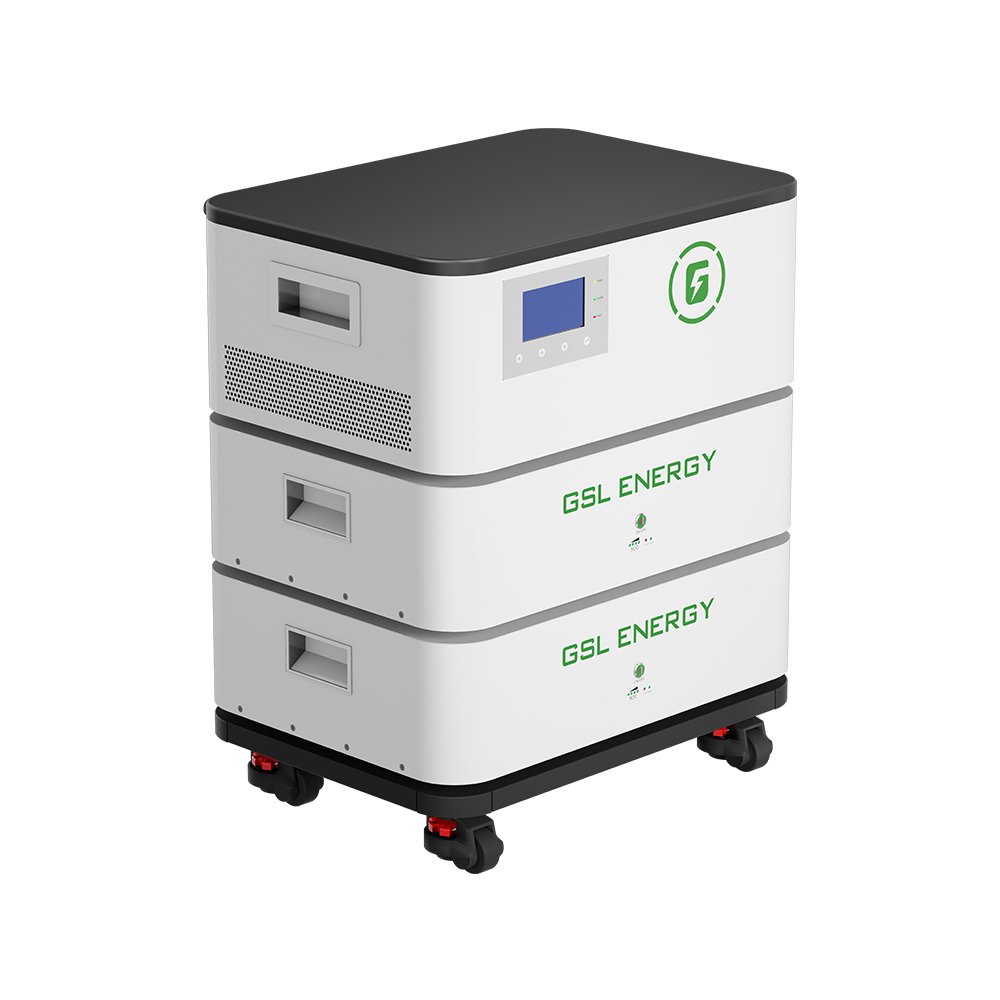

ALL-IN-ONE Energy Storage System With Hybrid Inverter
Model: GS L-AIO-6K10
Battery Chemistry: LiFePO4 Battery
Lifespan:6500+ Cycles

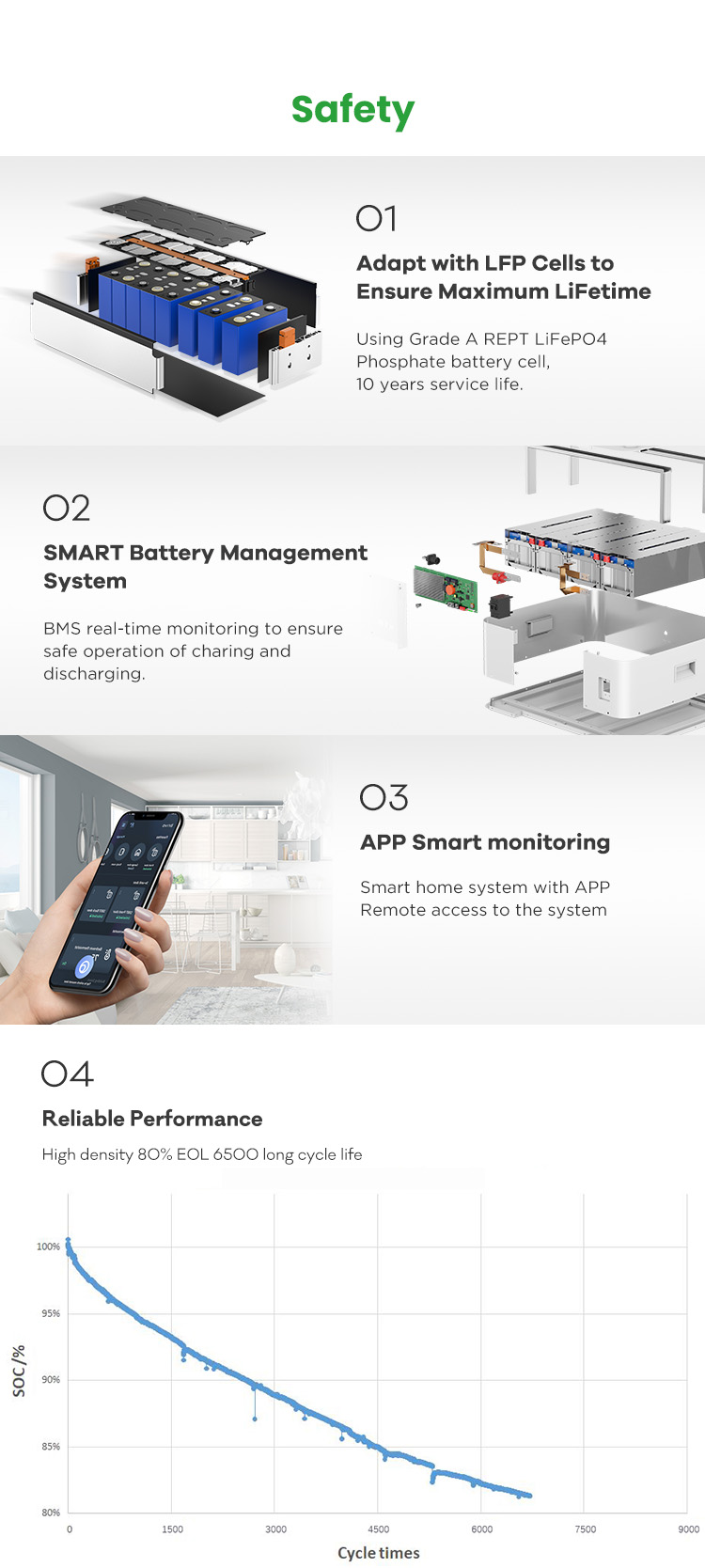

1. Safety: LFP Battery, stable and safe module, pack, system, triple protection; IP65, outdoor installation, away from living room.
2. Simple: Modular design, a single person can carry and install it; Plug and play, 30 min quick installation.
3. Interconnection: Space-saving; 0.15 sq. m footprint; Global cloud platform & Mobile APP anytime and anywhere; Open API, support power internet applications.

PDF ↓

Parameter
Related products

Model No	GSL-AIO-6K10	GSL-AIO-6K20
Battery Input Data
Battery Type	LFP(LiFePO4)
Nominal Capacity	10.24KWh	20.48KWh
Number of Batteries	2
Battery Voltage	51.2V
Voltage Range	42~60V
Max. Charging / Discharging Current	100A
DC input (PV)
Rated output power	6000w
Max. output power	6.6kW
Max. output apparent power	6.6kVA
Rated output current	27.3A;
Max. output current	30A
Switching time	<10ms
Rated output voltage/frequency	L/N/PE 220V/230V 50Hz/60Hz
Output power factor	0.8 leading ... 0.8 lagging
Total current harmonic distortion rate (on-grid)	<2%
AC Output (Load)
Max. output power	6.6kW
Max. output apparent power	6.6kVA
Max. output current	30A
Rated output voltage/frequency	L/N/PE 220V/230V 50Hz/60Hz
Total Voltage Harmonic Distortion Rate (off-Grid)	<3%
AC Output (Charging Pile)
Max. output apparent power	7.4kVA
Max. output current	40A
Rated output voltage/frequency	L/N/PE 220V/230V 50Hz/60Hz
AC Input
Max. output apparent power	10kVA
Max. output current	50A
Rated output voltage/frequency	L/N/PE 220V/230V 50Hz/60Hz
Efficiency
Max. Conversion Efficiency	97.50%
Standard
Safety Regulations	IEC62109-1/-2
Electromagnetic Compatibility	EN61000-6-1/EN61000-6-3
Basic Parameter

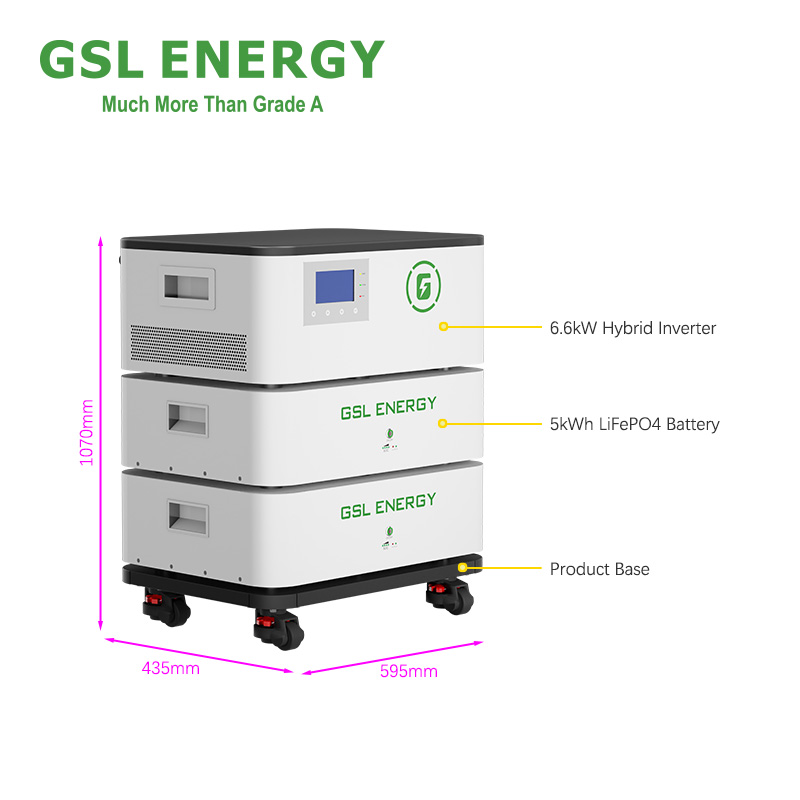

Dimension (WDH)	595435630mm	5954351070mm
Weight	125.5kg	215.5kg
Cooling Method	air-cooling, wind speed adjustable
Protection Class	IP20
Ambient Temperature	-25℃~+60℃ (>45degree)
Maximum altitude	3000m
Communication mode	RS485/WIFI/GPRS (external communication bar)

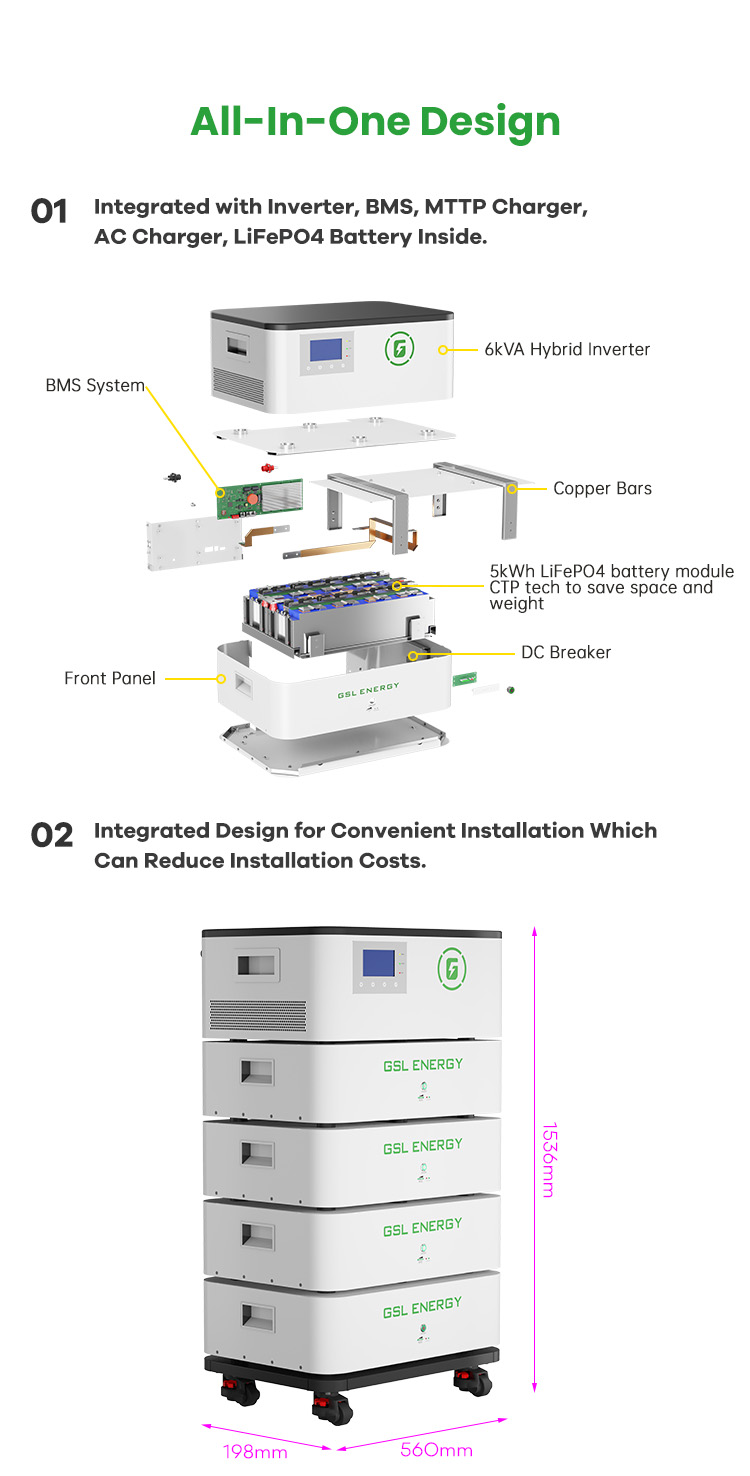

All In One energy storgae systems Containing inverter-integrated lithium battery energy storage, improving efficiency, reducing energy consumption, enhancing scenario adaptability, and upgrading the level of intelligence.

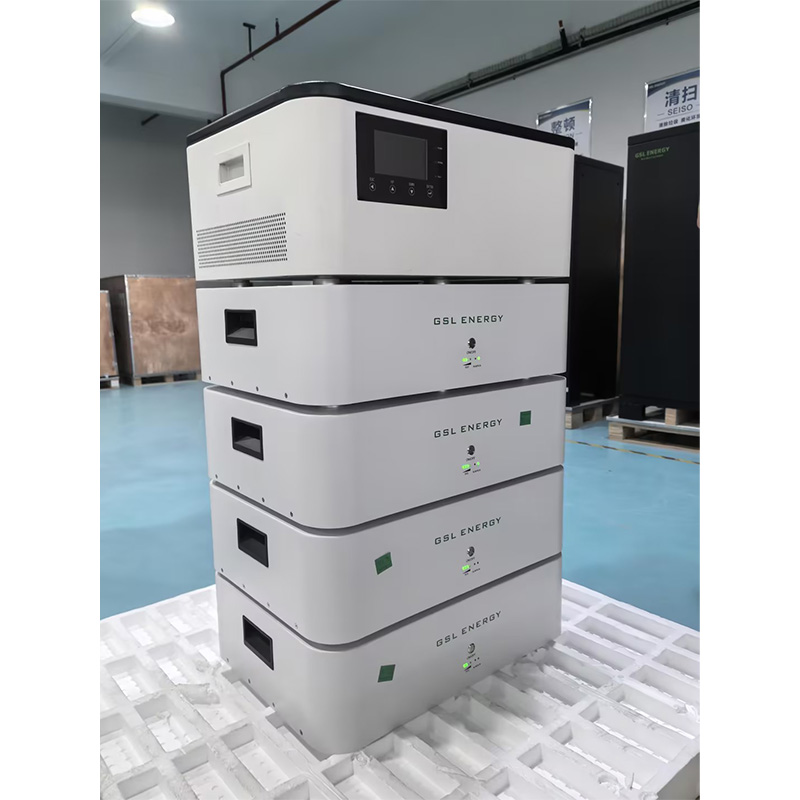

10.24kwh All In One energy storgae systems details
